Honeycomb Paper Making Machine

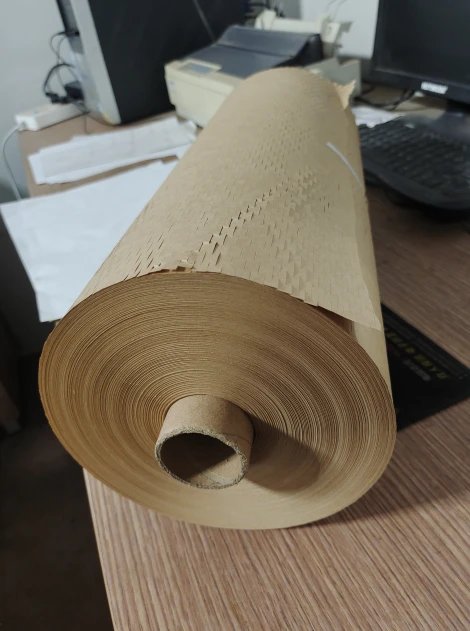

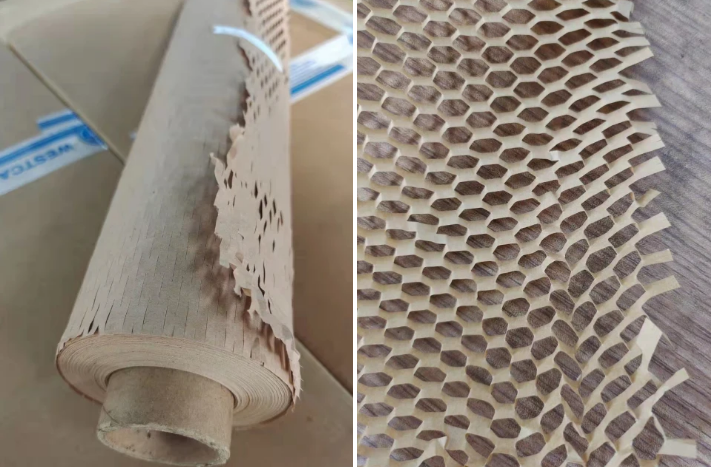

Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning. It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.
Product:
Application:
Honeycomb paper is eco-friendly and cost effective alternative for plastic bubble wrap cushioning. It is easy to stretch,more soft and flexible,provide cushion protect without surface scratch.Finished products from this machine can be used to pack fruits,flowers,ceramics,glassware,etc.
Machine features:

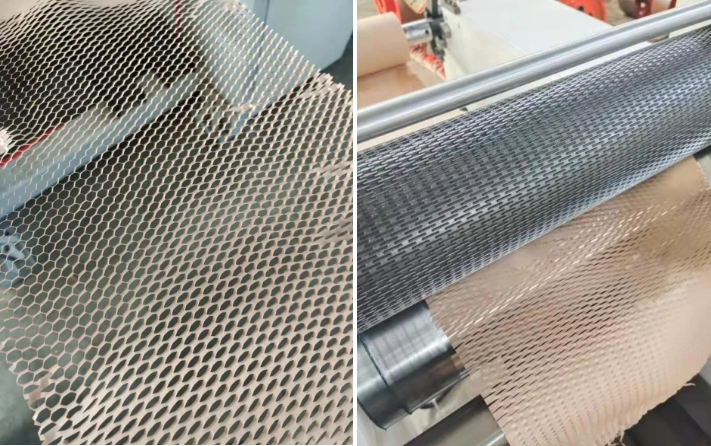

1. This honeycomb paper making machine is suitable for die cutting honeycomb paper, wrapping paper,shock-absorbing kraft paper, fish net paper from 70g to 100g.
2. The unwinding,cutting and rewinding in one process.
3. Main motor equipped with Inverter for speed regulation.
4. Automatic ultrasonic web guide controller for unwinding.
5. Tension controlled by magnetic powder brake and clutch.
6. Automatic meter counting device,automatically stop after it reaches the length you set.
7. Pneumatic cylinder to control the cutting mould up and down.
8. Roll to sheet cutting is optional.
Machine specification
Web working width |
600mm |
Mould effective width |
500mm |
Unwinding diameter |
0-1200mm |
Unwinding stand weight |
1Ton ( can make more bigger ) |
Unwinding shaft |
3 inch inflatable air shaft |
Rewinding shaft |
1 inch/1.5 inch/2 inch/ 3 inch |
Machine size |
2620*1640*1160(LWH) |
Machine weigth |
1000Kgs |
Power supply |
380V 3 Phases 5 Wires |
Air pressure |
6-8Kg/c Square meter |
