Application
This machine is suitable for heat sealing and cutting bags of BOPP, PP, PE and other materials. Suitable for making flower bags, triangle bags and candy bags. This machine adopts microcomputer fixed length, photoelectric tracking, limit stop, automatic counting, automatic deviation correction, and alarm when the number is reached. The post-feeding adopts double feeding and double-motor double tension control.
Machine features
1.The machine adopt micro-computer control,step motor material-feeding
2.Freely length-fixed,length-fixed photoelectric tracking,photoelectric error correction
3.Unwinding magnetic powder brake control,aotu error correction control
4. Auto meter counting,unwinding up-down;Main unit frequency adjusting speed,exalted shut off

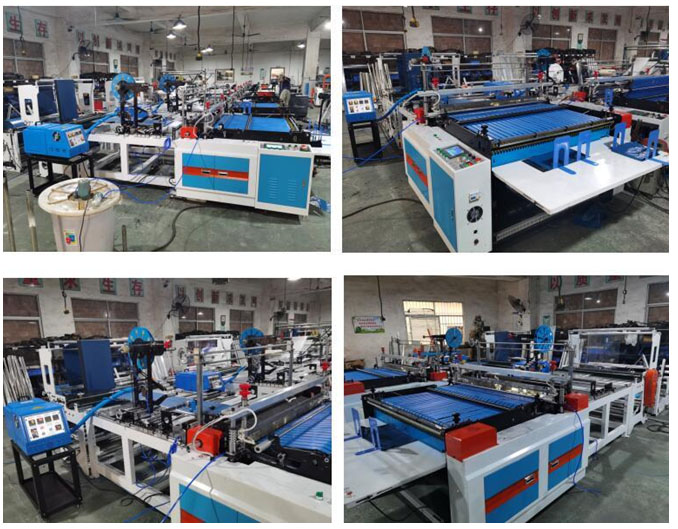

Machine

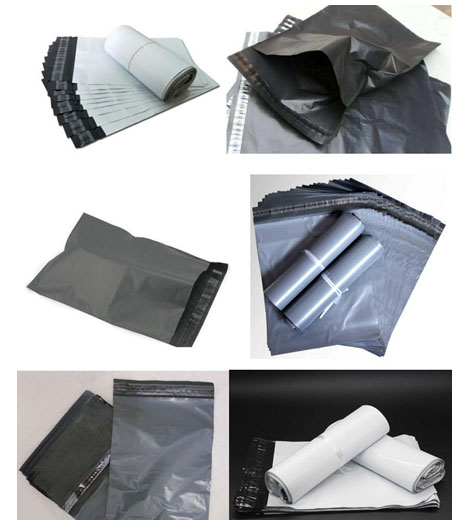

Product
Machine specification
|
Bag making width |
1200mm |
|
Bag making length |
150mm |
|
Bag making speed
|
80-120 bags/min |
|
Total power |
6.5kw |
|
Consumption power |
4.5kw |
|
Voltage |
220 V, 50 Hz / single Phase |
|
Machine dimension |
L : 6000mm , W : 3400mm, H : 2000mm. |
|
Total weight |
2200kg |
